In today’s commercial equipment landscape, innovation is no longer defined by size — it’s defined by efficiency.

Self-service kiosks are thinner. Medical devices are more compact. Smart vending machines integrate more electronics in less space. Retail displays are sleeker. Industrial equipment is denser and more modular.

Across all of these applications, one engineering reality remains constant: Every millimeter matters.

Ultra-slim linear motion systems have evolved from niche components into critical mechanical design elements. The Accuride 2400 Ultra-Slim Series — including models 2415, 2421, and 2431 — was engineered specifically for applications requiring extremely thin profiles while maintaining smooth, reliable movement

As commercial equipment becomes more electronics-dense and serviceability becomes more important, motion hardware must deliver precision performance without consuming valuable internal space.

The Shift Toward Compact, Serviceable Design

Modern commercial equipment must integrate a growing number of internal systems:

• Power supplies
• Control boards
• Connectivity modules
• Payment hardware
• Displays and user interfaces

All within increasingly compact enclosures.

Traditional motion hardware was historically designed for larger storage environments such as tool drawers or file cabinets. While robust, these systems often consume valuable internal width and height in modern compact equipment.

Ultra-slim motion systems allow engineers to reclaim internal volume while maintaining reliable movement and service access.

Engineering Insight

Compact motion hardware isn’t just about saving space — it enables:

• Higher component density
• Improved thermal airflow paths
• Easier service access for technicians
• Smaller and more efficient product footprints

In electronics-driven equipment, reclaiming even a few millimeters can significantly improve overall product design flexibility.

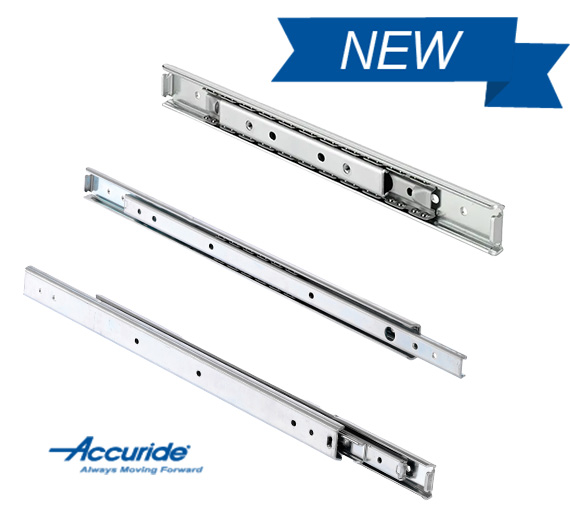

The 2400 Ultra-Slim Series

Designed for space-saving applications requiring smooth, precise movement, the Accuride 2400 Series combines compact geometry with reliable mechanical performance.

Key engineering characteristics include:

• Ultra-smooth operation for consistent motion
• Die-formed members for enhanced structural durability
• Compact 20 mm height envelope for tight installations

The series includes three models optimized for different extension requirements and application needs.

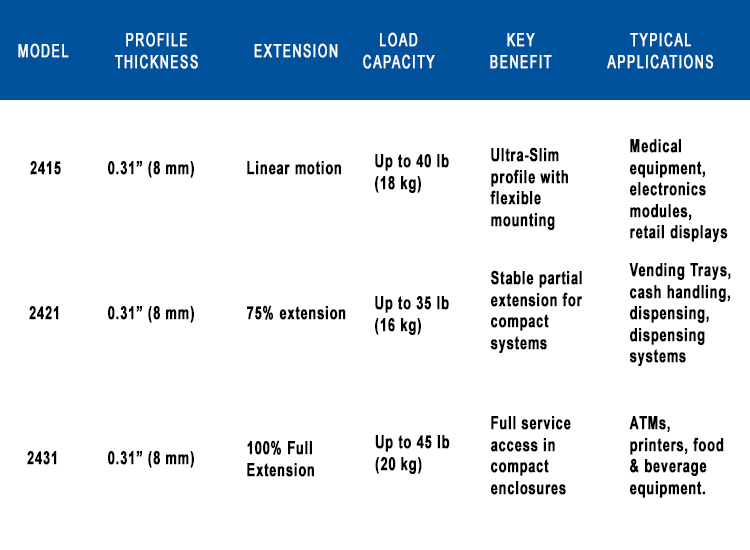

2400 Series Product Comparison

Motion Quality and Precision Manufacturing

Smooth motion is not just about user experience — it is fundamentally tied to manufacturing precision.

One of the key contributors to the performance of the 2400 Series is the use of die-formed slide members rather than roll-formed members.

Roll Forming vs Die Forming

Drawer slide members are commonly produced using either roll forming or die forming, two manufacturing methods with different performance characteristics.

Roll Forming

Roll forming is a continuous manufacturing process where flat steel strip passes through a sequence of rollers that gradually shape the slide profile.

This process is highly efficient for large production volumes and helps minimize material waste, making it a cost-effective manufacturing method.

However, because the material is shaped incrementally through multiple rollers, dimensional tolerances can vary slightly along the length of the profile. In drawer slide assemblies, these variations may lead to small inconsistencies in ball race geometry or slide alignment.

While these variations are acceptable for many applications, they can affect motion consistency in precision systems.

Die Forming

Die forming shapes the slide members using precision tooling within a stamping press.

Because the geometry is defined by rigid tooling surfaces, the process produces tighter dimensional tolerances and more consistent slide profiles.

This results in:

• More uniform ball race geometry
• Improved alignment between slide members
• Reduced variation in movement across production batches

The outcome is smoother, more controlled motion — particularly important in applications where equipment must operate reliably for thousands of cycles.

While die forming typically involves higher tooling investment and slower production compared to roll forming, it delivers superior precision and motion consistency.

For demanding commercial applications, these characteristics translate directly into better performance and reliability.
